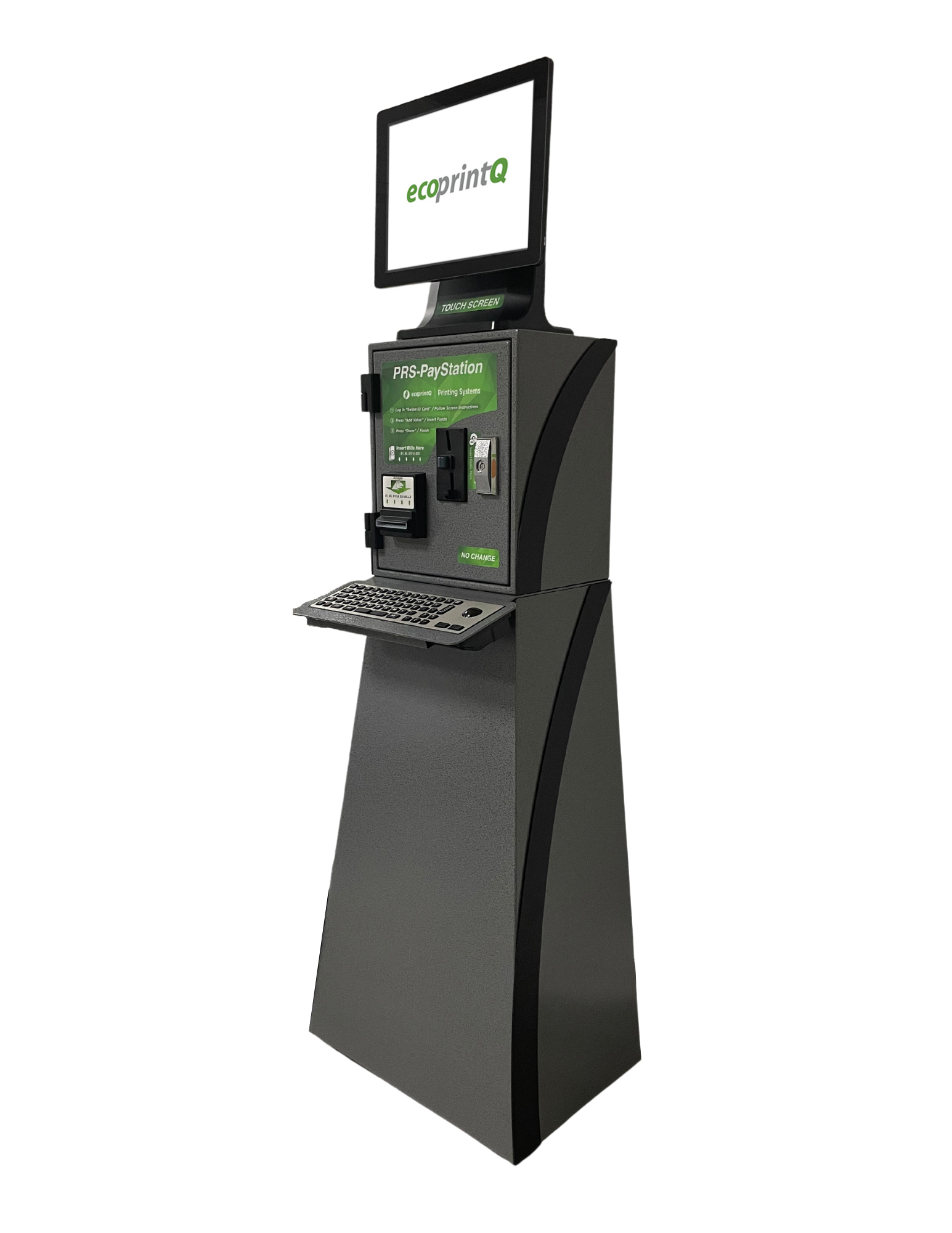

Mini Kiosk B-600

The Mini Kiosk B-600, a user-friendly and technically advanced versatile equipment available for market savvy institutions, providing a self-serve environment to users when recharging their PaperCut MF accounts using cash. The Kiosk accepts Coins (1c, 5c, 10c, 25c, $1) and Bills ($1, $2, $5, $20). Available for the US and Canada Markets.

Watch Video

Select a Language

Configuration
Description

B-600 Option

Description

Top Functionality

The Mini Kiosk B-600 adds independent support capabilities to the Bill Box. As a complete turn-key system, it becomes a self-reliable station available for any type of institution implementing a Cost Recovery Solution. Combined with the PaperCut MF Print Release Module, users may access their pending print jobs.

“Cash-to-Account” functionalities in addition to the PaperCut MF Software compliment these self-standing units providing students a self-service environment eliminating additional onsite staffer supervision.

The Mini Kiosk B-600 recharges personal PaperCut MF accounts and accepts such monies combinations as Coins (1c, 5c, 10c, 25c, $1) and Bills ($1, $5, $10, and $20). Additionally, the collected revenue remains securely locked in a separate and independent compartment.

The dynamic combination of software-hardware commodity makes the Mini Kiosk B-600 an easily accessible, cost-effective, and highly secure method accepting various cash payments. Additionally, the PaperCut MF Application modules may be used as a combination of both the Add Value Station (AVS) plus the Print Release Station (PRS), two valuable systems that permit users to recharge personal accounts while navigating pending print jobs in queue.

The Mini Kiosk B-600 is equipped with:

1 Computer and LCD 15” Touch Screen Monitor with 1 Embeded Swipe Reader to support card based logins
1 Integrated stainless steel keyboard with trackball
1 set of Lock keys (the Money Access through the ‘front’)
1 Bill Acceptor capable of accepting $1, $5, $10, $20 (600 bill stacker) or Optionally Coin Acceptor w/ Collection Box.
30” Metal Stand for independent support
1 UPS Battery and 2 cooling fans

Common Locations:

College and University Computer Courtyards
Media Centers and Public Libraries
Student Copy – Print Centers

Specifications

Model Mini Kiosk B-600
Dimensions:	Height: 63 ”	Width: 20 ”	Depth: 14 ”	Weight: 160 lbs
Network Connectivity:	TCP/IP via Computer Ethernet Port
LCD Monitor:	Elo Touch 15-inch (1024 x 768) 75Hz .297mm TFT Flat Panel Display with embeded swipe card reader
Key Board:	Metal Keyboard with Track Ball
Swipe Reader (ID Logic Reader):	Embeded with LCD Monitor
Bill Acceptor (500 and 1000 bill stacker):	MicroCoin USB Interface to USB ($1, $5, $10, $20) plus optional Coin Acceptor
Kiosk computer requirements (Standard Commodity):	Minimum Specs (Win 2000, XP, RAM: 512MB, HD: 20GB)
Power Requirements:	120 VAC, 15 A
Back-UPS AC Output (Back up):	120 VAC, 60 Hz, 5 A, 300 W
Back-UPS AC Output (Surge):	120 VAC, 60 Hz, 4.2 A, 500 W (20 min)

Architecture

The Mini Kiosk B-600 communicates directly with the PaperCutMF Application Server to validate user accounts, recharge and update user’s balance using XML over HTTP communication via encrypted SSL connection.
